Camera Monitoring System (CMS)

CMS for Truck & Heavy-Duty

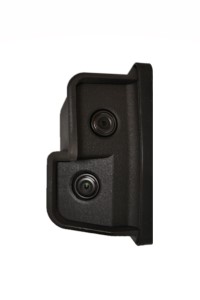

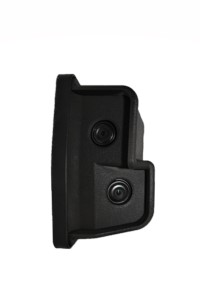

CES62M(Class II/Narrow) + CES64M(Class IV)

Features: • Image Sensor: 1/3.7” CMOS Image Sensor; • Image Resolution: 1280 × 720; • Frame Rate: 30 FPS; • Video Output: AHD 720P; • Wide Dynamic Range: YES, 120 dB @ 3-Expo; • Supply Voltage: DC 9 V ~ 16 V; • Working Current: ≤ 100 mA; • Minimum Illumination: >3.0 Lux @ 8 Meters; • Water Resistance: IP67; • Operating Temperature: –40 ℃ ~ +85 ℃; • Storage Temperature: –40 ℃ ~ +90 ℃; • Cable Connector: WST / JST; • FOV – CES62M (Class II):; H 44°±5°, V 30°±5°, D 52°±5°; • FOV – CES64M (Class IV):; H 85°±5°, V 60°±5°, D 105°±5°; • Dimensions:; 49(W) × 40(H) × 38(D) mm (w/o bracket); 144 × 79 × 112 mm (with bracket, left and right side the same); • Housing Design:; The housing is a customized mold design; specific appearance requirements can be discussed upon request.

Introduction

Add to Inquiry (0)

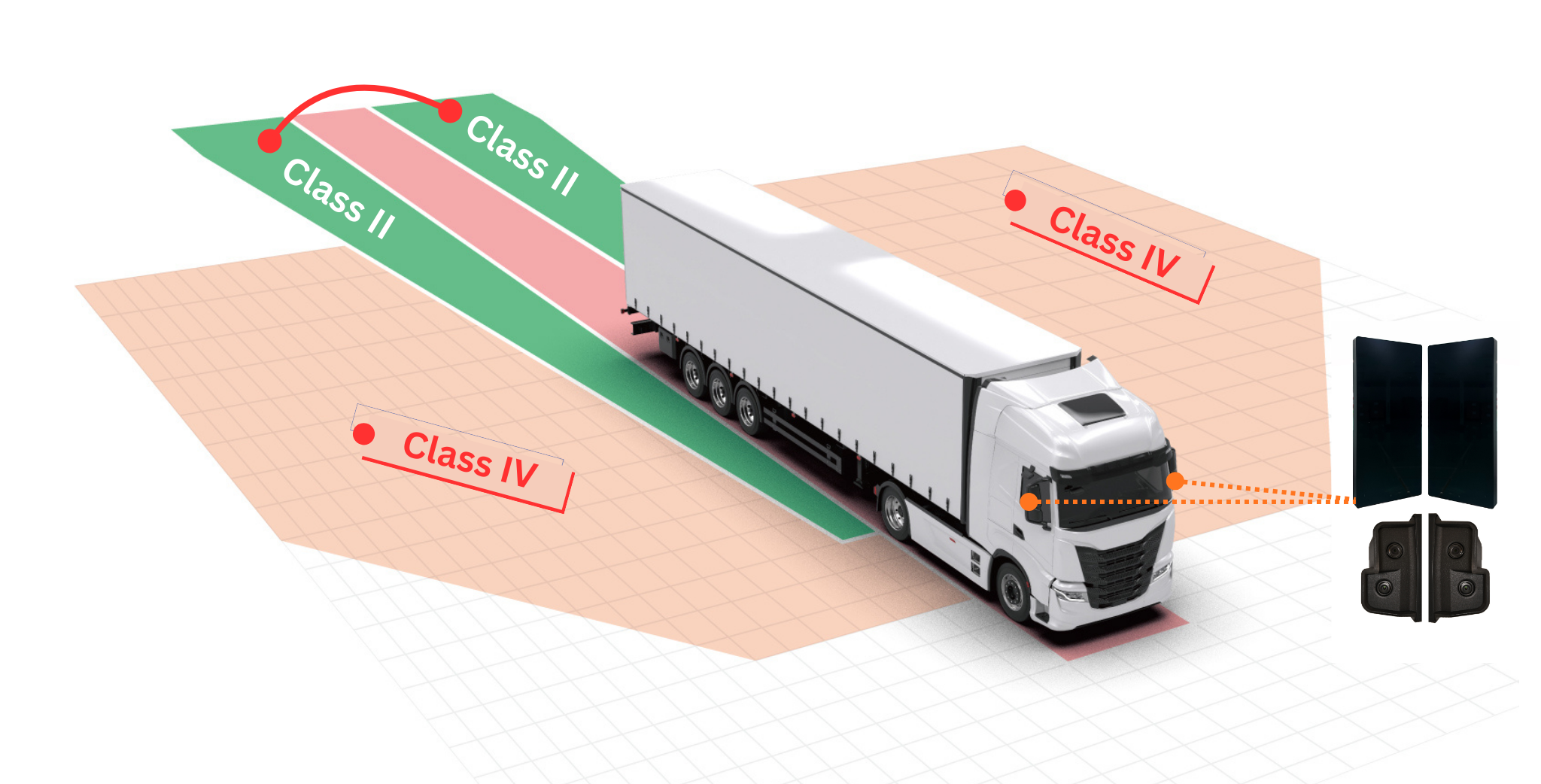

Integrated Dual-Camera Design：Integrated dual-camera design with narrow-angle (Class II) and wide-angle (Class IV) lenses.

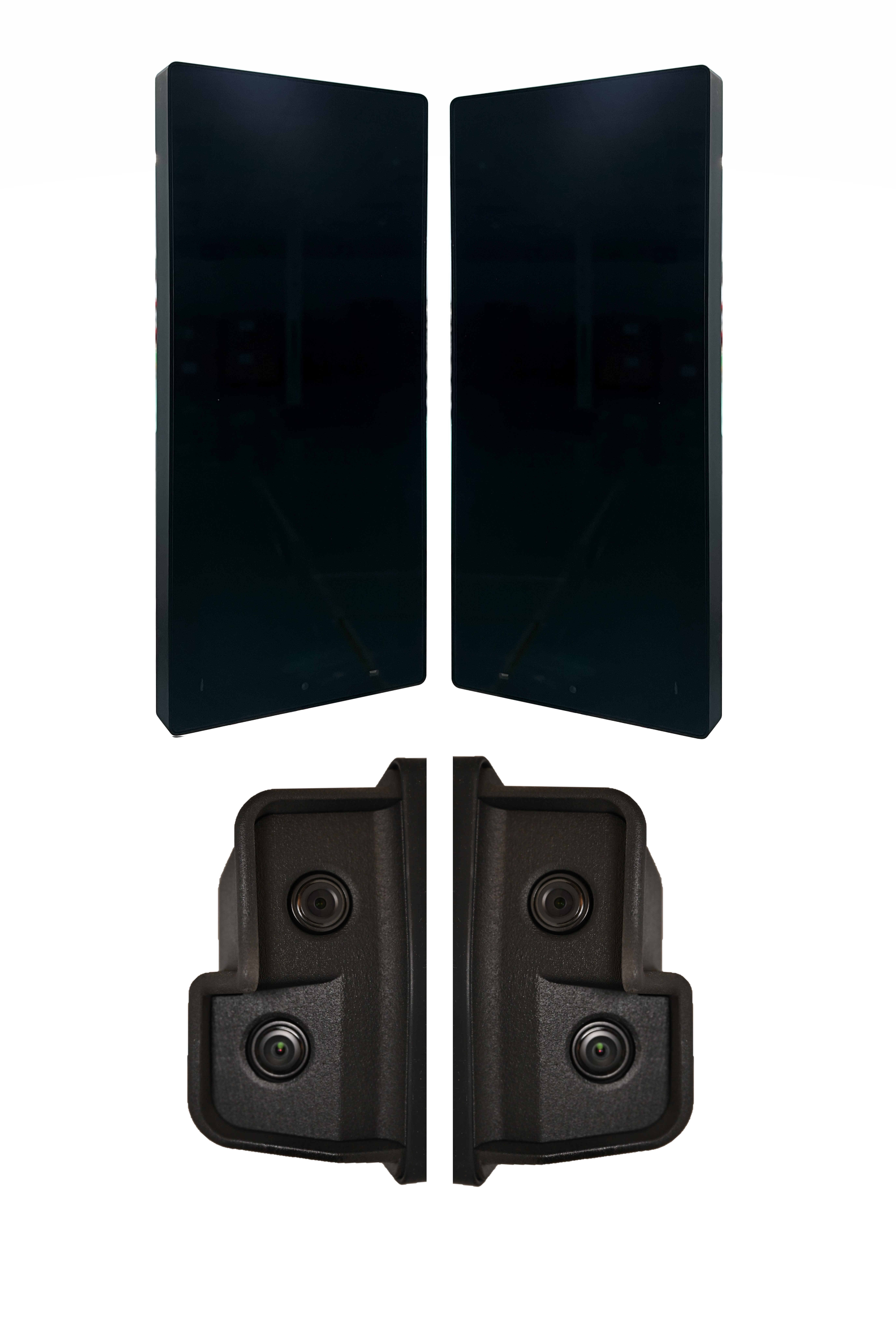

Installation：Mounted on both sides of the vehicle with a durable metal housing for continuous side-view coverage.

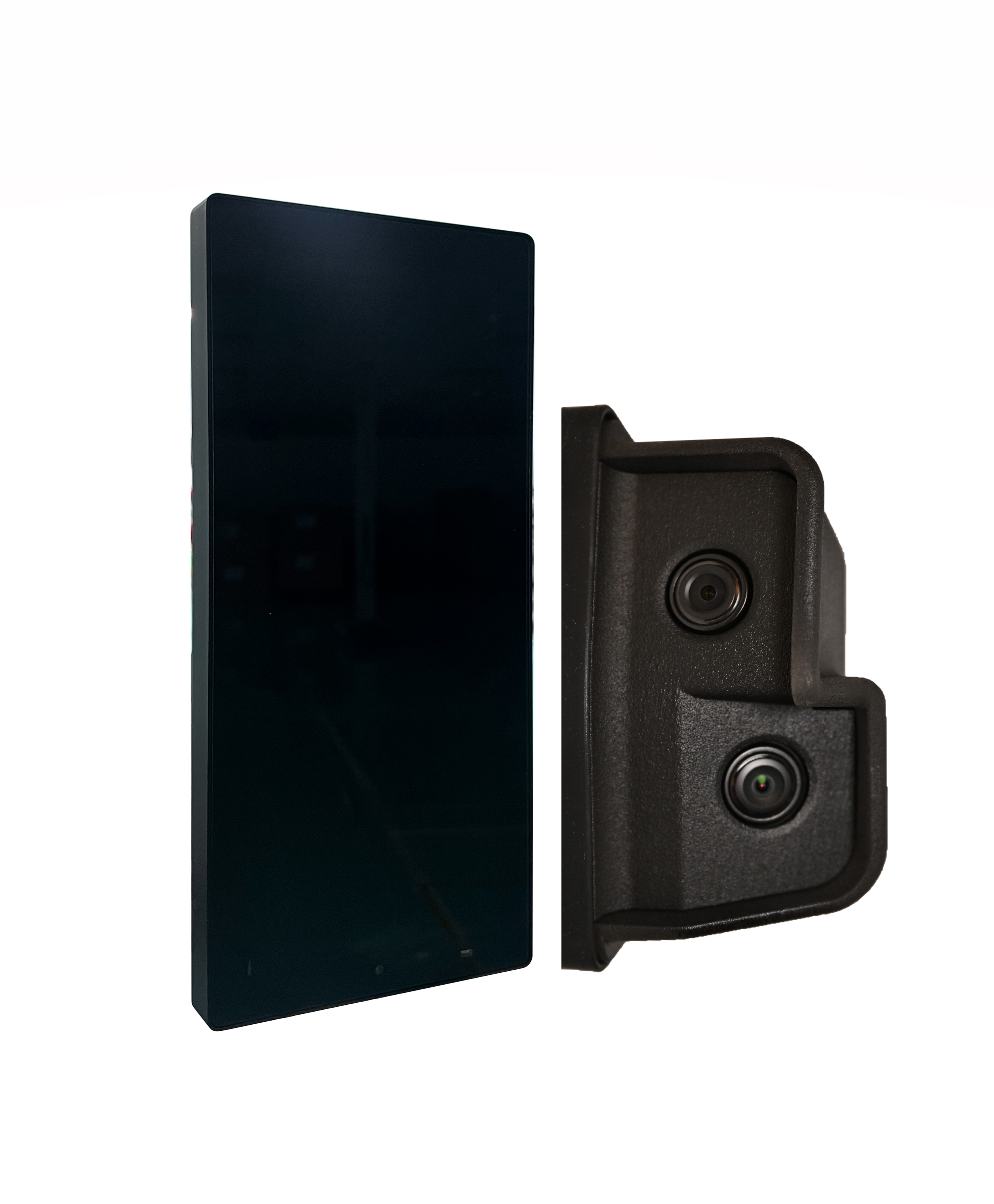

Display Output：Vertical dual-channel display provides simultaneous long-range and wide-angle near-field views.
Safety Enhancement：Effectively reduces blind spots common in large commercial vehicles.
Environmental Performance：Delivers clear and stable images in rain, nighttime, and backlight conditions.

Actual installation methods, monitor configurations, camera connectors, and related accessories can be flexibly customized according to project requirements. Please contact us for further discussion if specific specifications are required.
