AI Camera

AI Camera- AEC-Q100

CER58M
Features
Sensor: 1/4" CMOS
Signal Output: AHD/ TVI
Frame Rate: 25/30
Resolution: 1280 x 960
Image Orientation: Normal/Mirror
Voltage: DC9 ~16 V
View Angle: H150°/V110°/D180°
WDR/HDR: Yes
Waterproof: IP68
Cam Size: 43.8(W)x39.1(H)x40.7(D)mm
Housing Material: ABS
Operation Temperature: -40 ℃ ~ +85 ℃

Introduction

  • Camera application: Rear or side installation
  • Corresponding regulations : UN-R158 (RVCS) Compliance, UN-R151 (BSIS)& UN-R159 (MOIS) Applicable
  • Alarm Mode:
    Rear Side Warning System / RCTA: OSD (On-Screen Display) Warning
    Rear Collision Detection System / RCD: OSD (On-Screen Display) Warning
  • Camera installation angle:
    Vehicle rear side installation angle: 45 degrees, 98 or 280cm from the ground (recommended value, disussable) Vehicle side installation angle: can be discussed
The connectors and accessories of camera are optional,  If there are specified connectors and models, please contact us for further discussion.

Add to Inquiry (0)
Added to Inquiry list.
  • Standard Specification

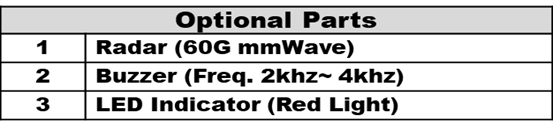

  • Optional Items

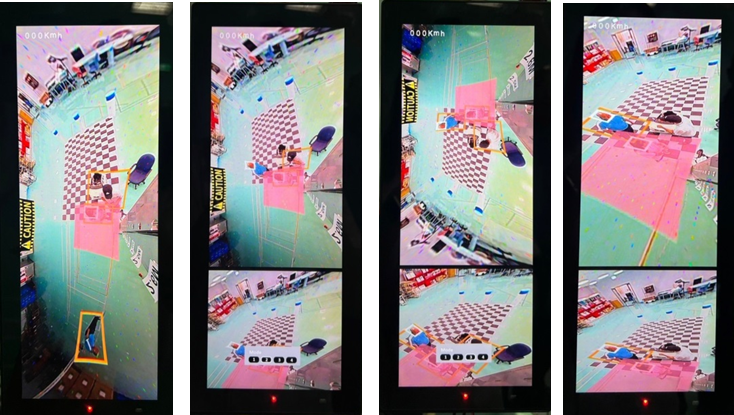

  • Detection Performance
    - Detected obstacle: vehicles, bikes, pedestrains
    - Warning Range: 3M (Red block warning with image and buzzer)
    - Detection Range: 7M
    - Visible Range: 10M behind, 7M in front of and rear of vehicle
